At 1 Source Material Handling, we specialize in providing automated and manual garment storage and sorting solutions for industrial laundries, dry-cleaning businesses, retail distribution centers, and correctional facilities. Our storage conveyors help maximize efficiency, optimize space, and streamline garment handling operations.
Utilizes vertical space for maximum storage capacity.
Seamless Integration
Connects with automated garment sorters and distribution systems.
Custom Configurations
Designed for retail warehouses, industrial laundries, and dry-cleaning operations.
Time-Saving Automation
Reduces manual handling and speeds up order fulfillment.
Garment Storage
GARMENT STORAGE

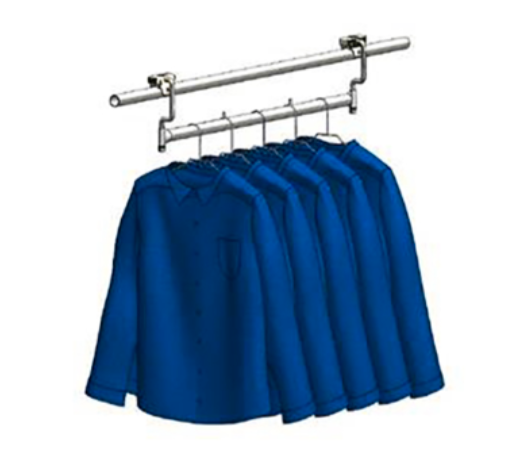

Garment Trolly Storage Systems
A Continuous Monorail and Storage System The Railex System 200 is a continuous monorail and storage system designed for moving, storing and sorting wearing apparel and Garments on Hangers (GOH). The System 200 is suitable for many other material handling applications where the requirements are for a low-cost rail system with capacities of 50 lb/ft and trolley loads to 250 lbs.
High-density storage that can utilize the full ceiling height and cubic space of your building.
Can be built ground- or ceiling-supported.
Quiet, clean, lubrication-free operation.
Easy installation. Ready to suspend.
Heavy duty and high strength. Fabricated from High Strength Zinc Plated steel.
Modular design can be re-configured, moved or added to as needed.

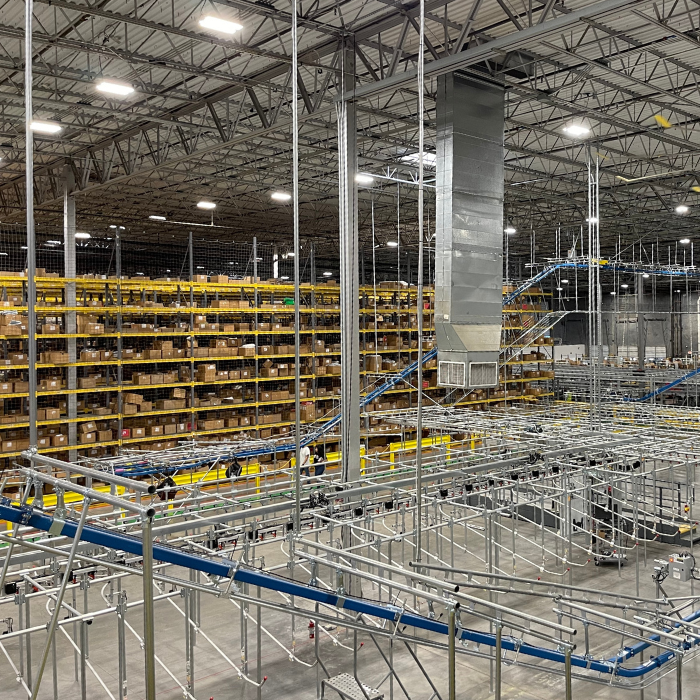

Many solutions for hanging Garments on Hangers in Pick Modules and pallet racks. The design shown offers higher density than any other method because it maximizes the use of your vertical space. The safety catch system can be manufactured to fit into any size pick module well. This system is so low profile that your racking can still be used for shelving when you don’t have need for the GOH space. This keeps your facility versatile.
Slick Rail Storage racking for Garments on hangers (GOH) 1, 2, and 3 Tier free standing storage systems
Heavy duty and high strength
High density storage that can utilize the full ceiling height and cubic space that your building has.
Can be built ground or ceiling supported
Qwick Connect GOH systems that work with standard pallet racking Drop-In GOH systems that work with any pallet racking. Ideal for storing clo30thing on hangers in pick modules.
Slick Rail Trolley Systems for Garments on Hangers Railex Trolleys
Run on gravity or powered systems or a combination of both.
Built to your specifications for your application
Suitable design for high speed product movement and storage
Ideal for ground level or “up in the rafters” to maximize your cubic building space.

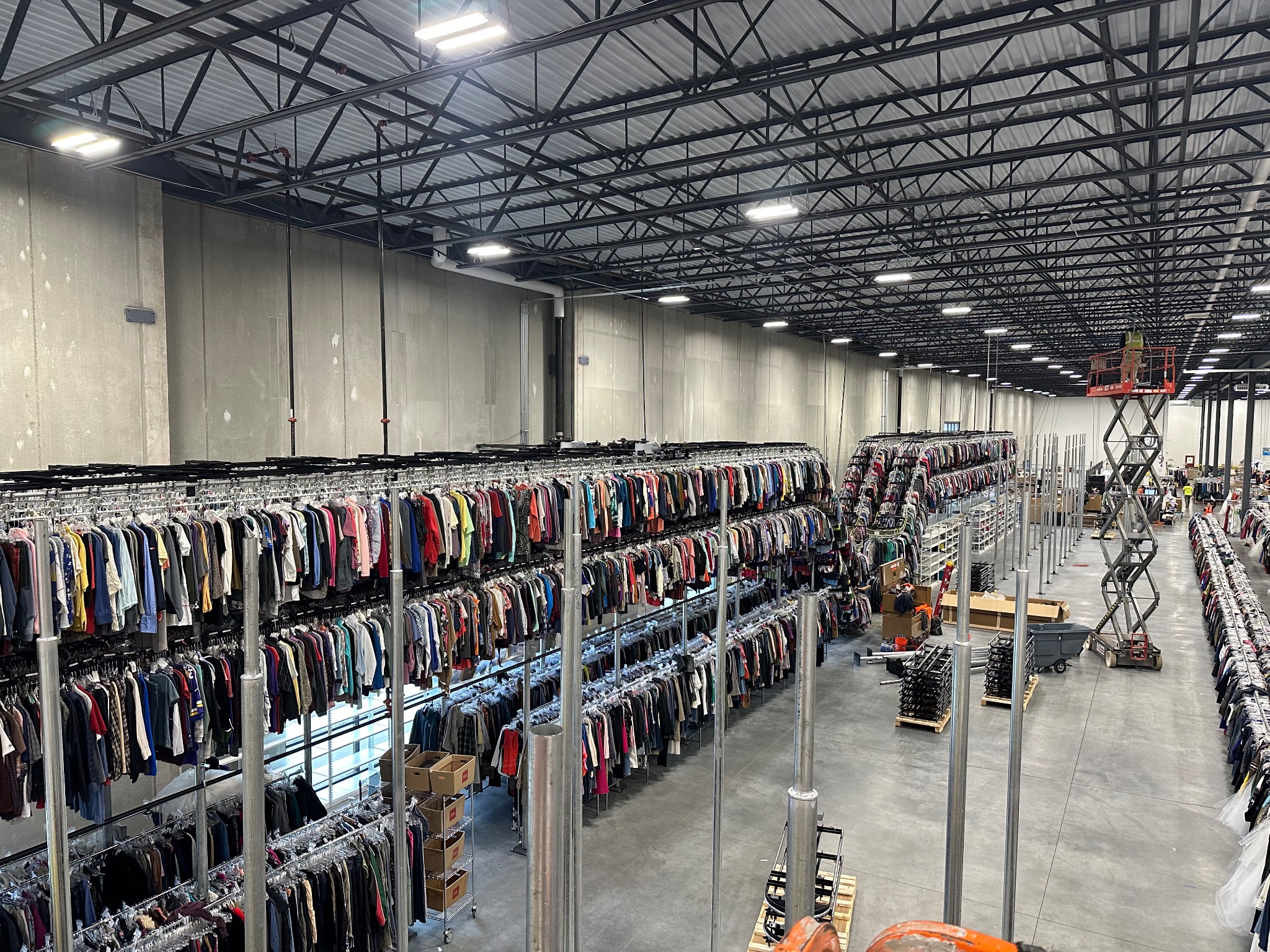

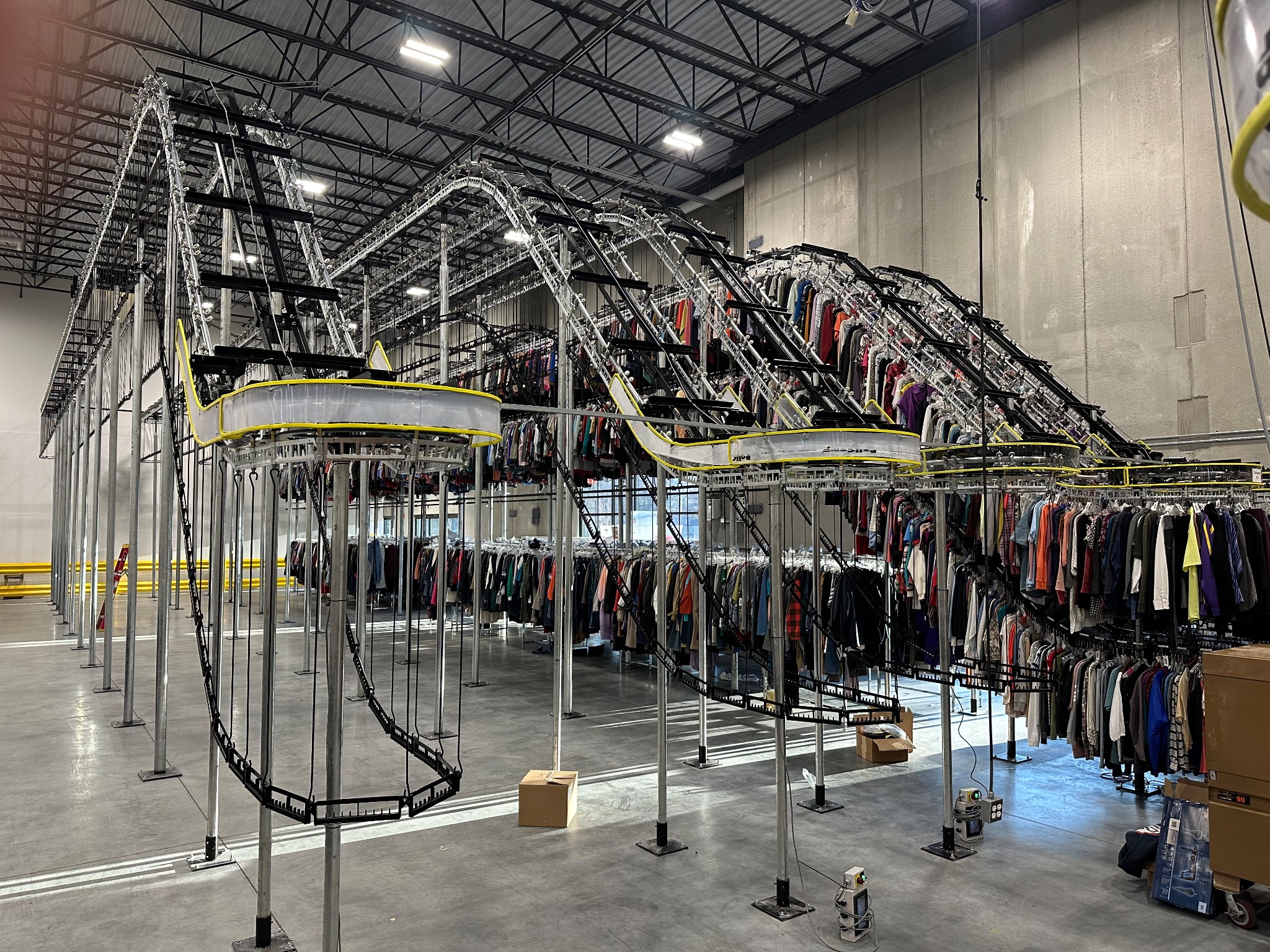

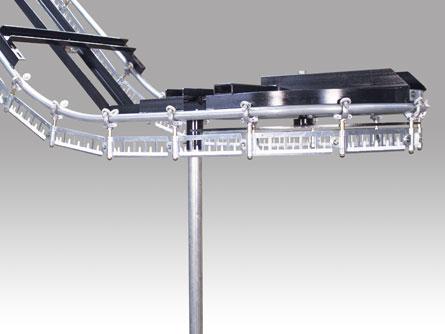

Utilize overhead space like never before with White’s Up’N’Down Conveyor. Ideal for stores or Distribution Centers , this system saves valuable floor space by moving orders to the ceiling, offering more room for your operations. This garment management system and software applications helps businesses in the fashion and apparel industries to manage their inventory, production, sales, and distribution processes. It allows users to track and monitor the entire lifecycle of a garment, from design and production to sales. This system helps to streamline operations, improve efficiency, and reduce costs. .
System Highlights:
Space Maximization: Store items off the floor and increase your available space by leveraging overhead storage.
Efficient Design: Bi-directional hand switches and optional keyboard controls ensure optimal operation and access.
Features:
Inverter controlled direct drive
Bi-directional hand switch - standard
Automatic keyboard control - optional
With the keyboard control, the microprocessor selects the shortest route (left or right) to the order's location
10 slot stamped steel frame, 12" width, with nylon inserts
Hardened steel universal with heat treated steel insert bushing
White’s Dispat-U-Veyor has been the industry leader in sorting conveyor systems for over 35 years. With the ability to sort up to 36 stations and handle up to 2,700 carriers per hour, this system enhances productivity in any garment handling operation.
Apparel & Retail
Key Features
Maximized Productivity
Sorts up to 2,700 carriers per hour for high-throughput environments.
Versatile Sorting
Up to 36 discharge stations from one loading position.
Automated Scanning & Sorting
Handles 7,000+ pieces per hour without an operator.
Route Storage & Delivery
Garments are automatically moved to a route holding area and delivered to the loading dock via Contin-U-Veyor
Apparel & Retail
Garment Sorting System Features
Up to 36 discharge stations from one loading position.
Variable speed drives (up to 90 feet per minute) for remote or manual control.
Drive Sprocket located in 180° or 90° bends.
Standardized track & chain – Easily expandable with available components.
White Conveyors’ Comp-U-Sort™ (CUS) is the leading-edge in automated garment sorting technology. Designed for high-volume operations, this system improves productivity and streamlines sorting.
Efficient garment storage and handling are essential for smooth operations in retail distribution centers. At 1 Source Material Handling, we provide customized storage conveyors, sorting and transport solutions to optimize space, workflow, and efficiency. Whether you need a fully automated system for high-volume processing or a manual storage solution for cost-effective organization, our conveyors are designed to meet your specific operational needs.
White’s Enclosed track (ET) conveyor is modular in nature and is easy to install, move or expand. It may be floor or ceiling mounted. The unit is rugged in design and operation is trouble free. The unit may be any length, fit any ceiling height and may be made in custom shapes or configurations. Whatever you need to store or transport will be kept “up on the ceiling” freeing all the floor space below for additional storage or other applications. Almost any king of hook or carrier may be used.
Typical unit requires only about 30 square feet of floor space for loading and unloading - freeing up valuable space for productive use. One person can effectively operate several units simultaneously. Both loading and unloading may be accomplished from the same point. Retrieval time is fast. Operator fatigue is reduced, and endless walking and searching for items is eliminated.
Whatever you are storing will be easy to find - because it is always hanging where it is supposed to be. Both new employees and old timers alike will be able to retrieve any item in seconds. Your entire inventory is continually on display permitting easy visual inspection. Enclosed track (ET) components specifications:
Minimum of 30" width.
Enclosed high strength steel track.
Four way universal joint chain - ultimate strength is over 10,000 lbs.
Heavy duty Caterpillar drive (constant speed). Reversible.
Motor 1 HP 220-460 volt, 3 phase, 60 cycle.
Automatic electrical overload cut-off device.
Screw type take-up or air take-up available.
Removable inspection track section.
Heat treated special alloy steel track bends.
Steel load carrying frames, 14 inches long, with 10 slots.
Series 800 control.
Reversing starter and time delay relay.
Speed: 60 feet per minute.
Maximum live load per frame: 150 lbs.
Maximum chain pull, 6001bs.
Includes 180° horizontal bend and 4 x 15° vertical bends.
Includes track hangar clamps for suspension.
Includes welding jig.
OPTIONS
Larger length units available
Additional horizontal bends
Floor support materials
Foot control
Hand control
Get a Custom Storage & Sorting Solution
At 1 Source Material Handling, we provide tailored conveyor and sorting solutions for the apparel and retail industries. Whether you need automated or manual storage, our high-quality, American-made systems deliver efficiency, organization, and cost savings.
